Nanoleaf

Nanoleaf Shapes

Name: Nanoleaf Shapes
Brand: Nanoleaf
SKU: NL42-0002HX-9PK
Price: 199.0 USD
Availability: InStock
Rating: 4.89 (35 reviews)

$199.00

Modular smart lighting with elegantly unified shapes
✓ Set the mood for special occasions
✓ Multi-touch control reacts to your touch
✓ Dances to ambient sounds and music
✓ Stylish, energy-efficient and long-lasting

Title:

Hexagons Smarter Kit (9 Panels)

Variant

Quantity:

Nanoleaf Nanoleaf Shapes

$199.00

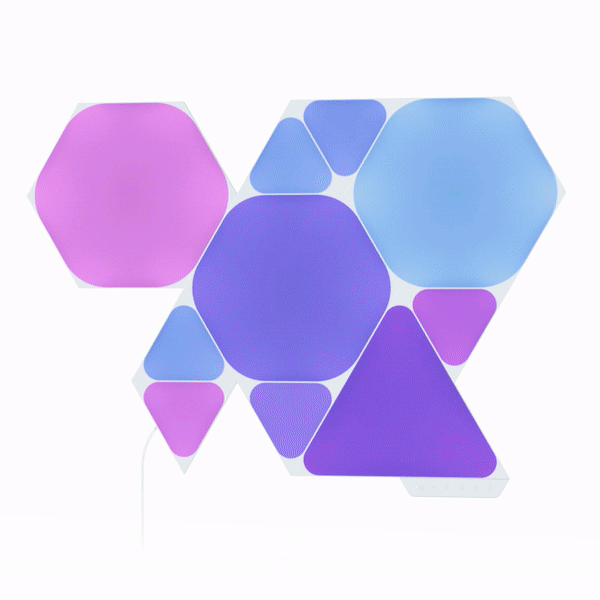

Truly Limitless Customisation

Create beautiful symmetry in any room, or get completely abstract - the choice is yours. With Connect+ technology in all Nanoleaf Shapes products, you can combine different shapes into a stunning light mosaic.

16 Million Colours

Create the right ambience for any occasion with favourite colours or any shades of white.

Fully Customisable

Set your favourite scenes with whatever colours you like from an easy-to-use companion app.

Layout Assistant

Explore different panel layouts with the Layout Assistant, and preview them in your room using the AR feature.

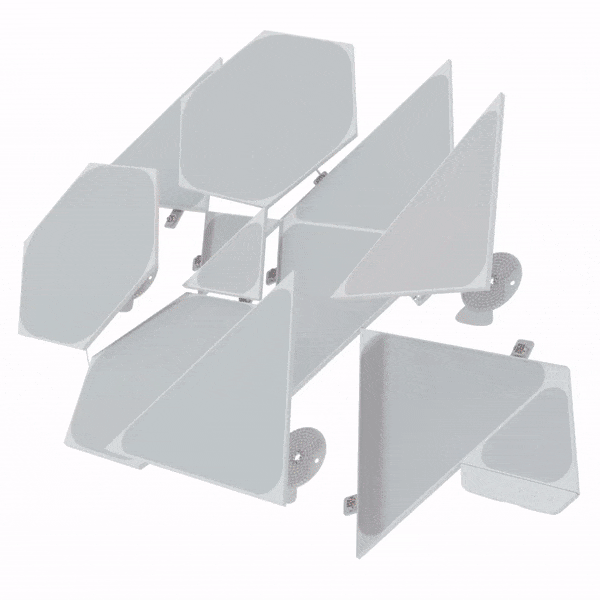

Simple Setup

Enjoy drill-free installation for a seamless setup experience.

Connect+ Technology

Create your own completely unique layouts with modular panels, with Connect+ technology for endless design combinations.

See Your Music Come to Life

Music Visualiser lets your panels dance to your favourite songs. Transforms your favourite songs into dancing symphonies of colour and light.

Entertainment Beyond The Screen

Watch the colours on your screen reflect on your panels for an immersive experience with Screen Mirror. Use Match mode for next-level movie nights and gaming sessions.

Reacts To Your Touch

Watch the light panels respond dynamically to your touch, control lights, or even play interactive games. Try the Highlight Motion for a stunning ripple effect.

Technical Specifications

Hexagons

What's Included

Starter Kit (9 Panels)
9x Hexagon Shapes Panels
1x Controller
Mounting Plates
Mounting Tapes
Rigid Linkers
100VAC - 240VAC Power Supply

Starter Kit (5 Panels)
9x Hexagon Shapes Panels
1x Controller
Mounting Plates
Mounting Tapes
Rigid Linkers
100VAC - 240VAC Power Supply

Expansion Pack
3x Hexagon Shapes Panels
Mounting Plates
Mounting Tapes
Rigid Linkers

2-Year Limited Hardware Warranty

Features

Connect+: Yes, Shapes panels are designed to work together

Touch Control: Yes

Music Sync: Yes

Screen Mirror: Yes

General

Luminous Flux Per Panel: 100 lumens

Lifetime: 25,000 hours

Communication Protocol: WiFi (2.4 GHz b/g/n) (NOTE: 5 GHz networks are not compatible with Nanoleaf products.)

Dimmable: Yes, (via Nanoleaf App, Voice, Touch)

Mounting Type: Via included double-sided tape or screw mounts (screws and anchors not included)

Nanoleaf App: Control via the Nanoleaf App (Android & iOS) for mobile/tablet or the Nanoleaf Desktop App (Windows & Mac).

Compatibility: Apple HomeKit, Amazon Alexa, Google Assistant, IFTTT, Nanoleaf Remote, SmartThings

Colour

Colour Capability: More than 16 million

Colour Temperature: 1200K - 6500K

Colour Channel Configuration: RGBW

Colour Rendering Index (CRI): 80

Power

Voltage: 110VAC – 120VAC

Max Power Supply Power Wattage: 42W

Max Energy Consumption Per Panel: 2W

Max Panels Per Power Supply: 21 Hexagons per 42W PSU

Max Panels Per Controller: 500 Hexagons

Measurements

Height Per Panel: 7.75 in / 20 cm

Width Per Panel: 9 in / 23 cm

Edge Thickness: 0.24 in / .6 cm

Mounted Thickness: 0.39 in / 1 cm

Weight Per Panel: 0.46 lb / 208 g

Cable Length: 8.2 ft / 2.5 m

Technical Specifications

Triangles

What's Included

Starter Kit (9 Panels)
9x Triangle Shapes Panels
1x Controller
Mounting Plates
Mounting Tapes
Rigid Linkers
100VAC - 240VAC Power Supply

Expansion Pack
3x Triangle Shapes Panels
Mounting Plates
Mounting Tapes
Rigid Linkers

2-Year Limited Hardware Warranty

Features

Connect+: Yes, Shapes panels are designed to work together

Touch Control: Yes

Music Sync: Yes

Screen Mirror: Yes

General

Luminous Flux Per Panel: 80 lumens

Lifetime: 25,000 hours

Communication Protocol: WiFi (2.4 GHz b/g/n) (NOTE: 5 GHz networks are not compatible with Nanoleaf products.)

Dimmable: Yes, (via Nanoleaf App, Voice, Touch)

Mounting Type: Via included double-sided tape or screw mounts (screws and anchors not included)

Nanoleaf App: Control via the Nanoleaf App (Android & iOS) for mobile/tablet or the Nanoleaf Desktop App (Windows & Mac).

Compatibility: Apple HomeKit, Amazon Alexa, Google Assistant, IFTTT, Nanoleaf Remote, SmartThings

Colour

Colour Capability: More than 16 million

Colour Temperature: 1200K - 6500K

Colour Channel Configuration: RGBW

Colour Rendering Index (CRI): 80

Power

Voltage: 110VAC – 240VAC

Max Power Supply Power Wattage: 42W

Max Energy Consumption Per Panel: 1.5W

Max Panels Per Power Supply: 28 Panels (NOTE: If combining shapes, make sure you have enough power. Use our PSU Calculator.)

Max Panels Per Controller: 500 Triangles

Measurements

Height Per Panel: 7.75 in / 20 cm

Width Per Panel: 9 in / 23 cm

Edge Thickness: 0.24 in / .6 cm

Mounted Thickness: 0.39 in / 1 cm

Weight Per Panel: 0.31 lb / 141 g

Cable Length: 8.2 ft / 2.5 m

Technical Specifications

Mini Triangles

What's Included

Starter Kit (9 Panels)
9x Mini Triangle Shapes Panels
1x Controller
Mounting Plates
Mounting Tape
Rigid Linkers
100VAC - 240VAC Power Supply Unit

Expansion Pack (10 Panels)
10x Mini Triangle Shapes Panels
Mounting Plates
Mounting Tape
Rigid Linkers

2-Year Limited Hardware Warranty

Features

Connect+: Yes, Shapes panels are designed to work together

Touch Control: Yes

Music Sync: Yes

Screen Mirror: Yes

General

Luminous Flux Per Panel: 20 lumens

Lifetime: 25,000 hours

Communication Protocol: WiFi (2.4 GHz b/g/n) (NOTE: 5 GHz networks are not compatible with Nanoleaf products.)

Dimmable: Yes, (via Nanoleaf App, Voice, Touch)

Mounting Type: Via included double-sided tape or screw mounts (screws and anchors not included)

Nanoleaf App: Control via the Nanoleaf App (Android & iOS) for mobile/tablet or the Nanoleaf Desktop App (Windows & Mac).

Compatibility: Apple HomeKit, Amazon Alexa, Google Assistant, IFTTT, Nanoleaf Remote, SmartThings

Colour

Colour Capability: More than 16 million

Colour Temperature: 1200K - 6500K

Colour Channel Configuration: RGBW

Colour Rendering Index (CRI): 80

Power

Voltage: 110VAC – 240VAC

Max Power Supply Power Wattage: 42W

Max Energy Consumption Per Panel: 0.54W

Max Panels Per Power Supply: 77 Panels

Max Panels Per Controller: 500 Mini Triangles

Measurements

Height Per Panel: 3.8 inches / 10 cm

Width Per Panel: 4.5 inches / 11.5 cm

Edge Thickness: 0.24 in / .6 cm

Mounted Thickness: 0.39 in / 1 cm

Weight Per Panel: 0.09 pounds / 40 g

Cable Length: 8.2 ft / 2.5 m

FAQ

Can I connect my Nanoleaf Shapes with the Nanoleaf Light Panels or Nanoleaf Canvas?

No, the Nanoleaf Shapes are not compatible with Light Panels or Canvas. But you can connect any shapes together from the Nanoleaf Shapes line (Hexagons, Triangles, and Mini Triangles). All of our products can be operated together in the Nanoleaf App even if they're not physically connected.

How many panels can I use per Controller or Power Supply?

It depends on how many of each shape you have in your setup. The total power per included PSU is 42W. Make sure you have enough power for your setup: Hexagon 2W/panel; Triangle 1.7W/panel; Mini Triangle 0.57W/panel. Each Controller supports up to 500 panels.

How are the panels mounted to the wall? Will they damage my wall?

Simply mount your Shapes with the included double-sided mounting tape onto any smooth and flat surface. When you mount them, leave the ends of the tape sticking out from the Mounting Plate so you can pull them along the wall later for a safe and easy removal.

Tape is NOT suitable for ceiling installations or textured, porous, or popcorn surfaces (ie. wallpaper or brick walls).
